LCD MMA-140/160/180/200/220 P4
Category:
Summary：
Inverter MMA Welding Machine
Portable Battery charger for charging 12V/24V lead acid batteries.Protected against over-load. Assembled with amperemeters, indicating charging current at all time. Compact, light and portable. Suitable for cars, vans and light truck. Provide with complete kits. With both input protection and output protection through fuses.
keywords:
MMA
Service:
LCD MMA-140/160/180/200/220 P4
Details
Product Features
1.Feature rich LCD display, bring the best welding experience.
2.MCu Chip Digital Technology, precise control with programs.
3. Intelligent Protection, over loading or over heating.
4.Adjustable Arc Force, makes welding much easier.
5.Anti-Stick,Hot Start, ensures easy removal of the electrode.
6. Stable & Reliable performance, makes welding enjoyable.
7.Auto compensate voltage fluctuation, takes wider voltage input

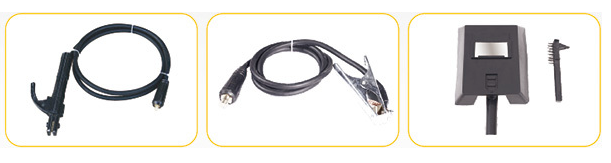

Accessories
Technical Data
| MODEL | LCD MMA-140P4 | LCD MMA-160P4 | LCD MMA-180P4 | LCD MMA-200P4 | LCD MMA-22OP4 |
| INPUT POWER | 220v 50/60HZ | 220V 50/60Hz | 220v 50/60HZ | 220V 50/60Hz | 220v 50/60Hz |
| RATED INPUT CAPACITY(KVA) | 5.8 | 6.8 | 7.9 | 9.2 | 10.2 |
| RATED INPUT CURRENT(A) | 26.4 | 30.9 | 35.9 | 41.8 | 46.3 |
| OPEN CIRCUIT VOLTAGE (V | 65 | 65 | 65 | 65 | 65 |
| OUTPUT CURRENT RANGE(A) | 20-140 | 20-160 | 20-180 | 20-200 | 20-220 |
| RATED DUTY CYCLE @ 25°C | 50% | 50% | 40% | 40% | 30% |
| SUITABLE ELECTRODE(mm) | 1.6~4.0 | 1.6~4.0 | 1.6~4.0 | 1.6~5.0 | 1.6~5.0 |
| INSULATION CLASS | F | F | F | F | F |
| PROTECTION GRADE | IP21S | IP21S | IP21S | IP21s | IP21S |
| N.W./G.W.(KG) | 3.4/3.8 | 3.6/4 | 5.2/5.7 | 5.4/5.9 | 5.8/6.3 |
| PACKAGE DIMENSION(mm) | 320*170*310 | 320*170*310 | 405*210*360 | 405*210*360 | 405*210*360 |
| LOADING QTY.(20FT/40FT/40HC) | 1600/3200/385o | 1600/3200/3850 | 900/1800/2200 | 900/1800/2200 | 900/1800/2200 |
1. Portable Battery charger for charging 12V/24V lead acid batteries.Protected against over-load.
2.Assembled with amperemeters, indicating charging current at all time.
3.Compact, light and portable.
4. Suitable for cars, vans and light truck.
5.Provide with complete kits.
6.With both input protection and output protection through fuses.
